sniff serial port - com port sniffer

Sniff any serial port in a system

Serial Port Sniffer ActiveX Control is a powerful and feature-rich ActiveX component, that is able not only fully monitor serial ports, but also edit data flows.

Its logic is very simple: our component creates additional virtual COM port in the system with the same name as the monitored serial port. All data flows go through created virtual COM port and are logged into a special document. Meanwhile, you can easily substitute any chunks of data with your own to influence the process of serial port communication the way you need.
control signal lines

With Serial Port Sniffer ActiveX you can:

Take full control of all signal lines

All signal lines (DTR, RTS, CTS, RTS) are supported. Moreover, the component's events include all of these lines state changes.
sniff serial port dataflows

Sniff data flows between serial port and application

With Serial Port Sniffer ActiveX you will be able to fully monitor data flows between application and serial port. It gives you the possibility to detect control lines changes, handflow, baudrate and ring state changes, and track timeout updates. Serial Port Sniffer Components methods allow you to check whether the port is being sniffed, open the serial port to be sniffed and close the port after sniffing.

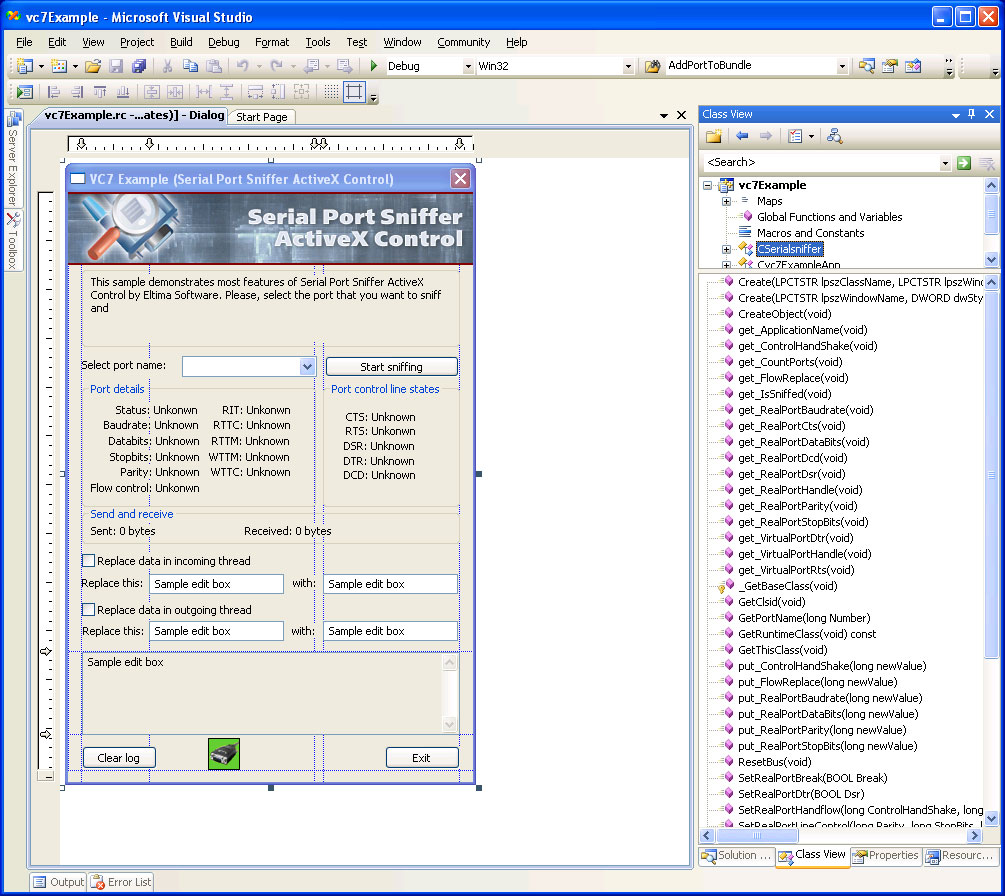

Serial Port Sniffer AX Control

Take full control over the monitoring process

Serial Port Sniffer ActiveX gives you the ability to influence the monitoring process. As all transmitted data is intercepted in the virtual port, created by our component, you can easily substitute it with any data characters and commands of your own to get deeper into the monitoring process.

Full features list:

  • Monitor and edit serial data streams directly from your application
  • Unique ActiveX Control - no need to use additional software for monitoring
  • Wide selection of supported events, methods and properties
  • Control lines support (DTR, RTS, CTS, RTS)
  • Usage examples for Microsoft VC++ and Microsoft Visual Basic included
  • No reboot required during installation and implementation

Demo version limitations:

  • Reminder when invoking Start() method.

Interface languages:

English

Compatible with:

  • Windows XP 32-bit
  • Windows 2000
  • Windows XP 64-bit
  • Windows 2003 32-bit
  • Windows 2003 64-bit
  • Windows 2008 32-bit
  • Windows 2008 64-bit
  • Windows Vista 32-bit
  • Windows Vista 64-bit
# Feature Serial Monitor AX Serial Sniffer AX
1 Change DTR
yes
yes
2 Change DSR
yes
yes
3 Change RTS
yes
yes
4 Change CTS
yes
yes
5 Open/Close port
yes
yes
6 Change Baudrate
yes
yes
7 Change Handflow control
yes
yes
8 Change Line control
yes
yes
9 Detect Ring
yes
yes
10 Write to port
yes
yes
11 Read from port
yes
yes
12 OnTimeouts
yes
yes
13 Change control chars
+(OnIrp)
 no
14 On/Off break
+(OnIrp)
 no
15 Read data substitution
no
yes
16 Write data substitution
no
yes
17 Exact events timestamps
yes
no
18 Read 6 Kb of data(sec)
6
10
19 Stop sniffing when port is opened
yes
no
20 Start sniffing when port is opened
yes
no
21 Trace the application that opened port
yes
yes
